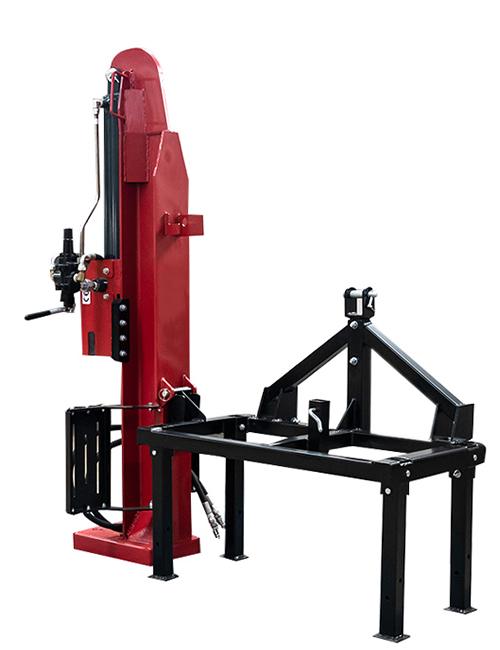

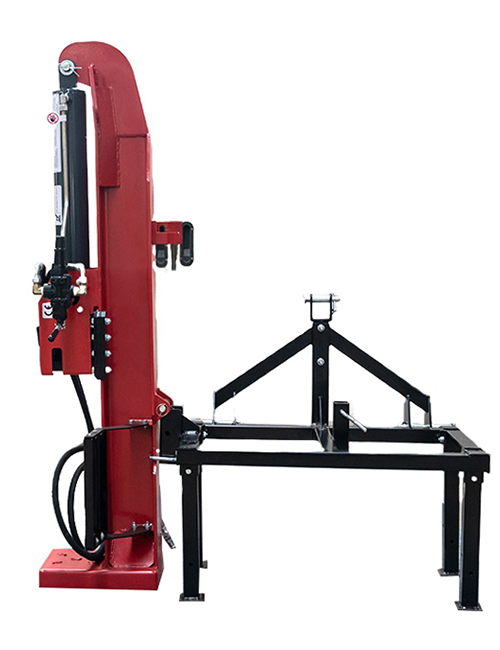

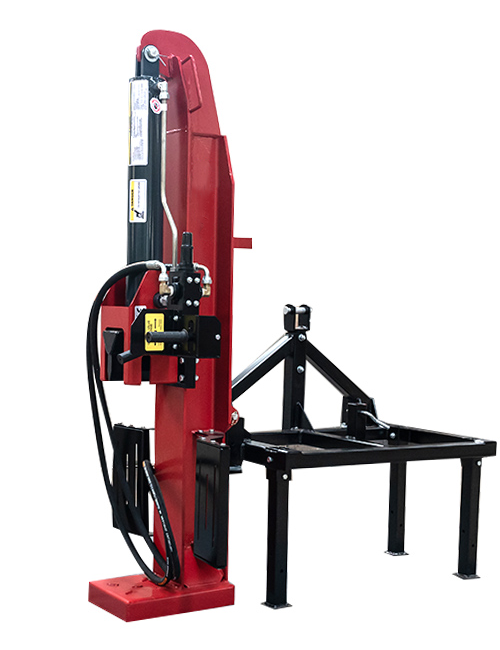

This Industrial 3 Point Tractor Drive Dual Action Horizontal / Vertical Log Splitter runs off your tractor’s hydraulics and will split in both the horizontal or vertical position for the larger logs. This 3 point wood splitter is fully adjustable for any category 1 or category 2, 3-point hitch size. Working height is from waist level and can be lowered almost to the ground or as low as your 3 PT arms can go. We recommend your flow rate be a minimum of 8GPM. Your actual tonnage and split time will depend on your tractor’s hydraulic output. Average split times can be from 6-11 seconds. The exact tonnage will depend on your tractor’s output. Actual PSI of your tractor and other things such as environmental conditions can impact actual tonnage and cycle times. With the Industrial 3 Point Tractor Drive Dual Action Horizontal / Vertical Log Splitter, you will split wood like a pro and keep your fireplace full all winter.

For more information click here

For more information click here

Description

Model STWS0122 STWS0128 STWS0135
Split Force 22tDepending on the tractor 28tDepending on the tractor 35tDepending on the tractor
Log Capacity 630mm 630mm 630mm
Recommended hydraulic system pressure for tractors 15-28MPa 15-28MPa 15-28MPa
Cylinder inner Diameter 4inch 4.5inch 5inch
Hydraulic Rod Diameter 44.5mm 44.5mm 44.5mm
Hydraulic Cylinder Stroke 600mm 600mm 600mm
Size of cleaver 200mm 200mm 200mm
Tractor mounted CAT1, CAT2 CAT1, CAT2 CAT1, CAT2
Recommended hydraulic flow rate for tractors 8-12GPM 10-15GPM 13-18GPM
Overall dimensions 1795*796*1006mm 1795*796*1006mm 1795*796*1006mm
Net Weight 207kg 211kg 220kg
Gross Weight 227kg 231kg 240kg
Packing size (mm) 1840×720×630 1840×720×630 1840×720×630
40HQ FCL 76 76 76
