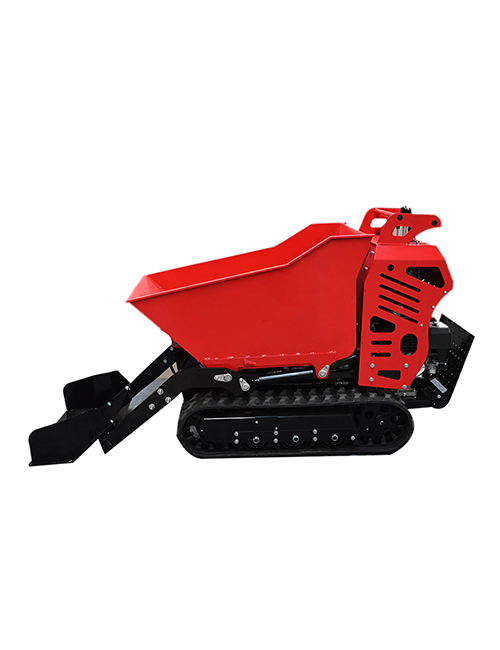

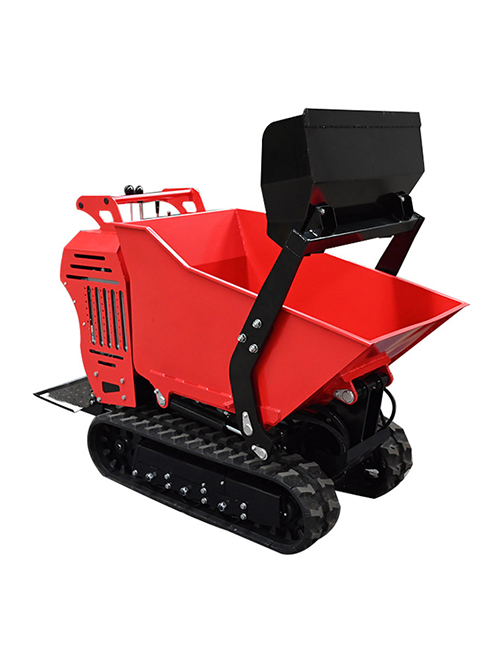

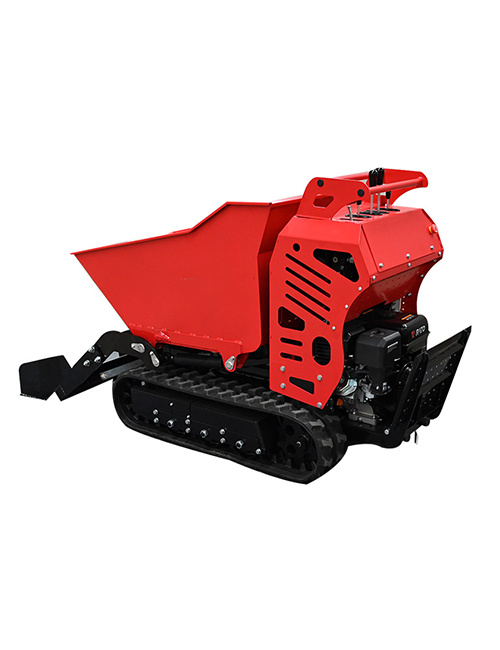

All-terrain crawler dumper, the crawer dumper replaces traditional wheeled walking with rubber tracks,large carrying capacity,strong grip and low noise, at the same time, the crawler type walking device increases the contact area between the machine and the ground, Do not harm farmland and roads, Has good driving and through performance, it can adapt to complex anddifficult road conditions such as paddy fields, marshes, and muddy field roads. The specific size can be customized according to your needs. Strong carrying capacity, strong climbing ability, simple operation and convenient maintenance.

For more information click here

For more information click here

Description

Model HCD500FL
Engine Single cylinder, four stroke, air cooling, 10HP
Displacement 270cc
Net Power 3600rpm,6.6kw
Fuel Tank 6.5L
Loading Capacity 500Kg
Track Width 180mm
Net Weight 358Kg
Gross Weight 378Kg
External dimensions 1890×730×1500mm
Max.Travel Speed 0-3.5km/h
Max.Gradeability 20°
Platform Ground Clearance 205mm
Hydraulic pressure 20MPa
Pump Type Double gear pump
Working Type Self Loading and Unloading
Oil tank capacity 19L
Hydraulic Oil N46
Bucket Capacity 0.25m³
Package Size 1710×770×1290mm
40HQ Loading Qty. 42pcs
